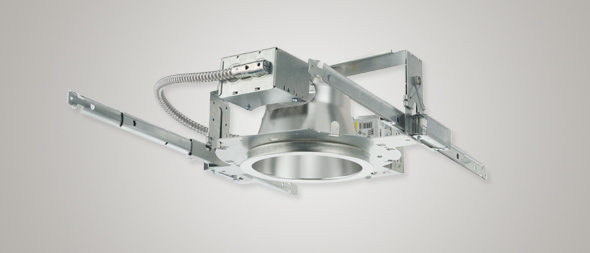

Product Overview
Application
For general downlight applications that demand high efficiency and superior optical control
Features
  • High performance Bounding Ray® optics and premium electric components deliver optimal light control and energy efficiency.
  • Self-flanged, semi-specular or diffuse anodized reflector.
  • Die-cast aluminum socket housing designed for effective heat dissipation and positive lamp positioning.
  • Expandable, self-locking mounting bars provide horizontal and vertical adjustment.
Configuration Matrix
Aperture DescriptionIES ViewerSpecSheet
6" Lamps: 2
 Watt/Type: 26W DTT
 Catalog #: AF 2/26DTT 6MB
 		AF 6" APERTURE OPEN DOWNLIGHT WITH BLACK MICROGROOVE BAFFLE 2/26DTT
6" Lamps: 2
 Watt/Type: 26W DTT
 Catalog #: AF 2/26DTT 6BC
 		AF 6" APERTURE OPEN DOWNLIGHT WITH BLACK CONE 2/26DTT
6" Lamps: 2
 Watt/Type: 26W DTT
 Catalog #: AF 2/26DTT 6AR T73
 		AF 6" APERTURE LENSED DOWNLIGHT WITH T73 PRISMATIC LENS 2/26DTT
6" Lamps: 2
 Watt/Type: 26W DTT
 Catalog #: AF 2/26DTT 6AR CGL
 		AF 6" APERTURE LENSED DOWNLIGHT WITH CLEAR GLASS LENS 2/26DTT
6" Lamps: 2
 Watt/Type: 26W DTT
 Catalog #: AF 2/26DTT 6MB CGL
 		AF 6" APERTURE LENSED DOWNLIGHT WITH BLACK MICROGROOVE BAFFLE 2/26DTT
6" Lamps: 2
 Watt/Type: 18W DTT
 Catalog #: AF 2/18DTT 6AR
 		AF 6" APERTURE OPEN DOWNLIGHT 2/18DTT
6" Lamps: 2
 Watt/Type: 18W DTT
 Catalog #: AF 2/18DTT 6AR CGL
 		AF 6" APERTURE LENSED DOWNLIGHT WITH CLEAR GLASS LENS 2/18DTT
6" Lamps: 2
 Watt/Type: 18W DTT
 Catalog #: AF 2/18DTT 6AR T73
 		AF 6" APERTURE LENSED DOWNLIGHT WITH T73 PRISMATIC GLASS LENS 2/18DTT
6" Lamps: 2
 Watt/Type: 18W DTT
 Catalog #: AF 2/18DTT 6MB
 		AF 6" APERTURE OPEN DOWNLIGHT WITH BLACK MICROGROOVE BAFFLE 2/18DTT
6" Lamps: 1
 Watt/Type: 32W TRT
 Catalog #: AF 1/32TRT 6AR
 		AF 6" APERTURE OPEN DOWNLIGHT 1/32TRT
6" Lamps: 1
 Watt/Type: 26W TRT
 Catalog #: AF 1/26TRT 6AR
 		AF 6" APERTURE OPEN DOWNLIGHT 1/26TRT
6" Lamps: 1
 Watt/Type: 18W TRT
 Catalog #: AF 1/18TRT 6AR
 		AF 6" APERTURE OPEN DOWNLIGHT 1/18TRT
6" Lamps: 1
 Watt/Type: 26W TRT
 Catalog #: AF 1/26TRT 6AR T73
 		AF 6" APERTURE LENSED DOWNLIGHT WITH T73 PRISMATIC LENS 1/26TRT
6" Lamps: 1
 Watt/Type: 26W TRT
 Catalog #: AF 1/26TRT 6AR CGL
 		AF 6" APERTURE LENSED DOWNLIGHT WITH CLEAR GLASS LENS 1/26TRT
6" Lamps: 1
 Watt/Type: 32W TRT
 Catalog #: AF 1/32TRT 6AR T73
 		AF 6" APERTURE LENSED DOWNLIGHT WITH T73 PRISMATIC LENS 1/32TRT
6" Lamps: 1
 Watt/Type: 32W TRT
 Catalog #: AF 1/32TRT 6AR CGL
 		AF 6" APERTURE LENSED DOWNLIGHT WITH CLEAR GLASS LENS 1/32TRT
6" Lamps: 1
 Watt/Type: 42W TRT
 Catalog #: AF 1/42TRT 6AR CGL
 		AF 6" APERTURE LENSED DOWNLIGHT WITH CLEAR GLASS LENS 1/42TRT
6" Lamps: 1
 Watt/Type: 26W TRT
 Catalog #: AF 1/26TRT 6CB
 		AF 6" APERTURE OPEN DOWNLIGHT WITH CROSS BAFFLE 1/26TRT
6" Lamps: 1
 Watt/Type: 18W TRT
 Catalog #: AF 1/18TRT 6CB
 		AF 6" APERTURE OPEN DOWNLIGHT WITH CROSS BAFFLE 1/18TRT
6" Lamps: 1
 Watt/Type: 32W TRT
 Catalog #: AF 1/32TRT 6CB
 		AF 6" APERTURE OPEN DOWNLIGHT WITH CROSS BAFFLE 1/32TRT
6" Lamps: 1
 Watt/Type: 42W TRT
 Catalog #: AF 1/42TRT 6CB
 		AF 6" APERTURE OPEN DOWNLIGHT WITH CROSS BAFFLE 1/42TRT
6" Lamps: 2
 Watt/Type: 26W DTT
 Catalog #: AF 2/26DTT 6AR
 		AF 6" APERTURE OPEN DOWNLIGHT 2/26DTT
6" Lamps: 1
 Watt/Type: 42W TRT
 Catalog #: AF 1/42TRT 6AR
 		AF 6" APERTURE OPEN DOWNLIGHT 1/42TRT
6" Lamps: 1
 Watt/Type: 42W COMPACT FLUORESCENT
 Catalog #: AF 1/42TRT 6WB
 		AF 6" APERTURE OPEN DOWNLIGHT WITH WHITE BAFFLE 1/42TRT
6" Lamps: 1
 Watt/Type: 26W DTT
 Catalog #: AF 1/26DTT 6AR
 		AF 6" OPEN DOWNLIGHT 1/26DTT
8" Lamps: 2
 Watt/Type: 26W DTT
 Catalog #: AF 2/26DTT 8AR T73
 		AF 8" LENSED DOWNLIGHT WITH T73 PRISMATIC LENS 2/26DTT
8" Lamps: 2
 Watt/Type: 26W DTT
 Catalog #: AF 2/26DTT 8BC
 		AF 8"APERTURE OPEN BLACK CONE DOWNLIGHT 2/26DTT
8" Lamps: 1
 Watt/Type: 32W TRT
 Catalog #: AF 1/32TRT 8AR
 		AF 8" APERTURE OPEN DOWNLIGHT 1/32TRT
8" Lamps: 1
 Watt/Type: 42W TRT
 Catalog #: AF 1/42TRT 8AR
 		AF 8" APERTURE OPEN DOWNLIGHT 1/42TRT
8" Lamps: 1
 Watt/Type: 42W TRT
 Catalog #: AF 1/42TRT 8CB
 		AF 8" APERTURE OPEN DOWNLIGHT WITH CROSS BAFFLE 1/42TRT
8" Lamps: 1
 Watt/Type: 32W TRT
 Catalog #: AF 1/32TRT 8CB
 		AF 8" APERTURE OPEN DOWNLIGHT WITH CROSS BAFFLE 1/32TRT
8" Lamps: 2
 Watt/Type: 26W TRT
 Catalog #: AF 2/26TRT 8CB
 		AF 8" APERTURE OPEN DOWNLIGHT WITH CROSS BAFFLE 2/26TRT
8" Lamps: 2
 Watt/Type: 32W TRT
 Catalog #: AF 2/32TRT 8CB
 		AF 8" APERTURE OPEN DOWNLIGHT WITH CROSS BAFFLE 2/32TRT
8" Lamps: 2
 Watt/Type: 42W TRT
 Catalog #: AF 2/42TRT 8CB
 		AF 8" APERTURE OPEN DOWNLIGHT WITH CROSS BAFFLE 2/42TRT
8" Lamps: 1
 Watt/Type: 42W TRT
 Catalog #: AF 1/42TRT 8AR CGL
 		AF 8" APERTURE LENSED DOWNLIGHT WITH CLEAR GLASS LENS 1/42TRT
8" Lamps: 1
 Watt/Type: 42W TRT
 Catalog #: AF 1/42TRT 8AR T73
 		AF 8" APERTURE LENSED DOWNLIGHT WITH T73 PRISMATIC LENS 1/42TRT
8" Lamps: 1
 Watt/Type: 32W TRT
 Catalog #: AF 1/32TRT 8AR CGL
 		AF 8" APERTURE LENSED DOWNLIGHT WITH CLEAR GLASS LENS 1/32TRT
8" Lamps: 2
 Watt/Type: 42W TRT
 Catalog #: AF 2/42TRT 8AR CGL
 		AF 8" APERTURE LENSED DOWNLIGHT WITH CLEAR GLASS LENS 2/42TRT
8" Lamps: 2
 Watt/Type: 42W TRT
 Catalog #: AF 2/42TRT 8AR T73
 		AF 8" APERTURE LENSED DOWNLIGHT WITH T73 PRISMATIC LENS 2/42TRT
8" Lamps: 2
 Watt/Type: 32W TRT
 Catalog #: AF 2/32TRT 8AR CGL
 		AF 8" APERTURE LENSED DOWNLIGHT WITH CLEAR GLASS LENS 2/32TRT
8" Lamps: 2
 Watt/Type: 32W TRT
 Catalog #: AF 2/32TRT 8AR T73
 		AF 8" APERTURE LENSED DOWNLIGHT WITH T73 PRISMATIC LENS 2/32TRT
8" Lamps: 2
 Watt/Type: 42W TRT
 Catalog #: AF 2/42TRT 8AR
 		AF 8" APERTURE OPEN DOWNLIGHT 2/42TRT
8" Lamps: 2
 Watt/Type: 32W TRT
 Catalog #: AF 2/32TRT 8AR
 		AF 8" APERTURE OPEN DOWNLIGHT 2/32TRT
8" Lamps: 2
 Watt/Type: 26W TRT
 Catalog #: AF 2/26TRT 8AR
 		AF 8" APERTURE OPEN DOWNLIGHT 2/26TRT
8" Lamps: 2
 Watt/Type: 18W DTT
 Catalog #: AF 2/18DTT 8AR T73
 		AF 8" APERTURE LENSED DOWNLIGHT WITH T73 PRISMATIC GLASS LENS 2/18DTT
8" Lamps: 2
 Watt/Type: 18W DTT
 Catalog #: AF 2/18DTT 8MB
 		AF 8" APERTURE OPEN DOWNLIGHT WITH BLACK MICROGROOVE BAFFLE 2/18DTT
8" Lamps: 2
 Watt/Type: 26W DTT
 Catalog #: AF 2/26DTT 8MB
 		AF 8" APERTURE OPEN DOWNLIGHT WITH BLACK MICROGROOVE BAFFLE 2/26DTT
8" Lamps: 2
 Watt/Type: 26W DTT
 Catalog #: AF 2/26DTT 8MB CGL
 		AF 8" APERTURE LENSED DOWNLIGHT WITH BLACK MICROGROOVE BAFFLE CLEAR GLASS LENS 2/26DTT
8" Lamps: 1
 Watt/Type: 57W TRT
 Catalog #: AF 1/57TRT 8AR
 		AF 8" APERTURE OPEN DOWNLIGHT 1/57TRT
8" Lamps: 2
 Watt/Type: 18W DTT
 Catalog #: AF 2/18DTT 8AR
 		AF 8" APERTURE OPEN DOWNLIGHT 2/18DTT
8" Lamps: 2
 Watt/Type: 26W DTT
 Catalog #: AF 2/26DTT 8AR
 		AF 8" APERTURE OPEN DOWNLIGHT 2/26DTT
8" Lamps: 2
 Watt/Type: 26W DTT
 Catalog #: AF 2/26DTT 8AR CGL
 		AF 8" APERTURE LENSED DOWNLIGHT WITH CLEAR GLASS LENS 2/26DTT
8" Lamps: 2
 Watt/Type: 18W DTT
 Catalog #: AF 2/18DTT 8AR CGL
 		AF 8" APERTURE LENSED DOWNLIGHT WITH CLEAR GLASS LENS 2/18DTT
10" Lamps: 3
 Watt/Type: 18W DTT
 Catalog #: AF 3/18DTT 10AR
 		AF 10" APERTURE OPEN DOWNLIGHT 3/18DTT
10" Lamps: 3
 Watt/Type: 26W DTT
 Catalog #: AF 3/26DTT 10MB
 		AF 10" APERTURE OPEN DOWNLIGHT BLACK MICROGROOVE BAFFLE 3/26DTT
10" Lamps: 3
 Watt/Type: 18W DTT
 Catalog #: AF 3/18DTT 10MB
 		AF 10" APERTURE OPEN DOWNLIGHT BLACK MICROGROOVE BAFFLE3/18DTT
10" Lamps: 3
 Watt/Type: 26W DTT
 Catalog #: AF 3/26DTT 10AR
 		AF 10" APERTURE OPEN DOWNLIGHT 3/26DTT
10" Lamps: 2
 Watt/Type: 57W TRT
 Catalog #: AF 2/57TRT 10AR
 		AF 10" APERTURE OPEN DOWNLIGHT 2/57TRT
10" Lamps: 3
 Watt/Type: 42W TRT
 Catalog #: AF 3/42TRT 10AR
 		AF 10" APERTURE OPEN DOWNLIGHT 3/42TRT
10" Lamps: 3
 Watt/Type: 26W DTT
 Catalog #: AF 3/32TRT 10AR
 		AF 10" APERTURE OPEN DOWNLIGHT 3/32TRT
10" Lamps: 2
 Watt/Type: 42W TRT
 Catalog #: AF 2/42TRT 10AR
 		AF 10" APERTURE OPEN DOWNLIGHT 2/42TRT
10" Lamps: 2
 Watt/Type: 32W TRT
 Catalog #: AF 2/32TRT 10AR
 		AF 10" APERTURE OPEN DOWNLIGHT 2/32TRT
10" Lamps: 2
 Watt/Type: 32W TRT
 Catalog #: AF 2/32TRT 10AR CGL
 		AF 10" APERTURE LENSED DOWNLIGHT WITH CLEAR GLASS LENS 2/32TRT
10" Lamps: 2
 Watt/Type: 42W TRT
 Catalog #: AF 2/42TRT 10CB
 		AF 10" APERTURE OPEN DOWNLIGHT WITH CROSS BAFFLE 2/42TRT
10" Lamps: 2
 Watt/Type: 32W TRT
 Catalog #: AF 2/32TRT 10CB
 		AF 10" APERTURE OPEN DOWNLIGHT WITH CROSS BAFFLE 2/32TRT
10" Lamps: 3
 Watt/Type: 42W TRT
 Catalog #: AF 3/42TRT 10AR CGL
 		AF 10" LENSED DOWNLIGHT WITH CLEAR GLASS LENS 3/42TRT
10" Lamps: 3
 Watt/Type: 42W TRT
 Catalog #: AF 3/42TRT 10AR T73
 		AF 10" LENSED DOWNLIGHT WITH T73 PRISMATIC LENS 3/42TRT
10" Lamps: 3
 Watt/Type: 32W TRT
 Catalog #: AF 3/32TRT 10AR T73
 		AF 10" LENSED DOWNLIGHT WITH T73 PRISMATIC LENS 3/32TRT
10" Lamps: 3
 Watt/Type: 32W TRT
 Catalog #: AF 3/32TRT 10AR CGL
 		AF 10" LENSED DOWNLIGHT WITH CLEAR GLASS LENS 3/32TRT
10" Lamps: 3
 Watt/Type: 32W TRT
 Catalog #: AF 3/32TRT 10CB
 		AF 10" APERTURE OPEN DOWNLIGHT WITH CROSS BAFFLE 3/32TRT
10" Lamps: 3
 Watt/Type: 42W TRT
 Catalog #: AF 3/42TRT 10CB
 		AF 10" APERTURE OPEN DOWNLIGHT WITH CROSS BAFFLE 3/42TRT
