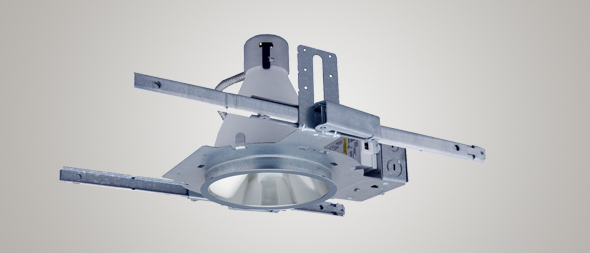

AFVW - CFL Open Wallwash

Product Overview

Application: For general wallwash applications that demand high efficiency, uniform vertical illumination and low aperture brightness

Features

Patented Vertisys® optical design and premium electric components deliver optimal light control and energy efficiency.
Unique "hybrid" wallwash kicker provides uniform vertical illumination with light high on the wall and no roomside “back-flash.
Self-flanged, semi-specular or diffuse anodized reflector.
Aluminum socket housing, keyed for positive lamp positioning.
Expandable, self-locking mounting bars provide horizontal and vertical adjustment.

Configuration Matrix

Aperture		Description	IES Viewer	SpecSheet
4"	Lamps: 1 Watt/Type: 26W TRT Catalog #: AFVW 26TRT 4AR	AFVW 4" APERTURE OPEN WALLWASH 26TRT
4"	Lamps: 1 Watt/Type: 18W TRT Catalog #: AFVW 18TRT 4AR	AFVW 4" APERTURE OPEN WALLWASH 18TRT
4"	Lamps: 1 Watt/Type: 13W DTT Catalog #: AFVW 13DTT 4AR	AFVW 4" APERTURE OPEN WALLWASH 13DTT
5"	Lamps: 1 Watt/Type: 18W TRT Catalog #: AFVW 26TRT 5AR	AFVW 5" APERTURE OPEN WALLWASH 26TRT
5"	Lamps: 1 Watt/Type: 26W DTT Catalog #: AFVW 32TRT 5AR	AFVW 5" APERTURE OPEN WALLWASH 32TRT
5"	Lamps: 1 Watt/Type: 18W TRT Catalog #: AFVW 18TRT 5AR	AFVW 5" APERTURE OPEN WALLWASH 18TRT
6"	Lamps: 1 Watt/Type: 42W COMPACT FLUORESCENT Catalog #: AFVW 6AR TRIM, AFV 32-42TRT 6 MVOLT HOUSING	42W TRT VERTICAL LAMP WALLWASH, WITH ELECTRONIC BALLAST.
6"	Lamps: 1 Watt/Type: 32W COMPACT FLUORESCENT Catalog #: AFVW 6AR TRIM, AFV 32-42TRT 6 MVOLT HOUSING	32W TRT VERTICAL LAMP WALLWASH, WITH ELECTRONIC BALLAST.
6"	Lamps: 1 Watt/Type: 18W COMPACT FLUORESCENT Catalog #: AFVW 6AR TRIM, AFVW 18DTT 6 MVOLT HOUSING	18W DTT VERTICAL LAMP WALLWASH, WITH ELECTRONIC BALLAST.
6"	Lamps: 1 Watt/Type: 18W COMPACT FLUORESCENT Catalog #: AFVW 6AR TRIM, AFVW 18TRT 6 MVOLT HOUSING	18W TRT VERICAL LAMP WALLWASH, WITH ELECTRONIC BALLAST.
6"	Lamps: 1 Watt/Type: 26W COMPACT FLUORESCENT Catalog #: AFVW 6AR TRIM, AFVW 26DTT 6 MVOLT HOUSING	26W DTT VERTICAL LAMP WALLWASH, WITH ELECTRONIC BALLAST.
6"	Lamps: 1 Watt/Type: 26W COMPACT FLUORESCENT Catalog #: AFVW 6AR TRIM, AFVW 26TRT 6 MVOLT HOUSING	26W TRT VERICAL LAMP WALLWASH, WITH ELECTRONIC BALLAST.
8"	Lamps: 1 Watt/Type: 42W COMPACT FLUORESCENT Catalog #: AFVW 8AR TRIM, AFV 32-42TRT 8 MVOLT HOUSING	42W TRT VERTICAL LAMP WALLWASH, WITH ELECTRONIC BALLAST.
8"	Lamps: 1 Watt/Type: 18W COMPACT FLUORESCENT Catalog #: AFVW 8AR TRIM, AFVW 18DTT 8 MVOLT HOUSING	18W DTT VERTICAL LAMP WALLWASH, WITH ELECTRONIC BALLAST.
8"	Lamps: 1 Watt/Type: 18W COMPACT FLUORESCENT Catalog #: AFVW 8AR TRIM, AFVW 18TRT 8 MVOLT HOUSING	18W TRT VERICAL LAMP WALLWASH, WITH ELECTRONIC BALLAST.
8"	Lamps: 1 Watt/Type: 26W COMPACT FLUORESCENT Catalog #: AFVW 8AR TRIM, AFVW 26DTT 8 MVOLT HOUSING	26W DTT VERTICAL LAMP WALLWASH, WITH ELECTRONIC BALLAST.
8"	Lamps: 1 Watt/Type: 26W COMPACT FLUORESCENT Catalog #: AFVW 8AR TRIM, AFVW 26TRT 8 MVOLT HOUSING	26W TRT VERICAL LAMP WALLWASH, WITH ELECTRONIC BALLAST.
8"	Lamps: 1 Watt/Type: 32W COMPACT FLUORESCENT Catalog #: AFVW 8AR TRT TRIM, AFV 32-42TRT 8 MVOLT HOUSING	32W TRT VERTICAL LAMP WALLWASH, WITH ELECTRONIC BALLAST.
