Product Detail

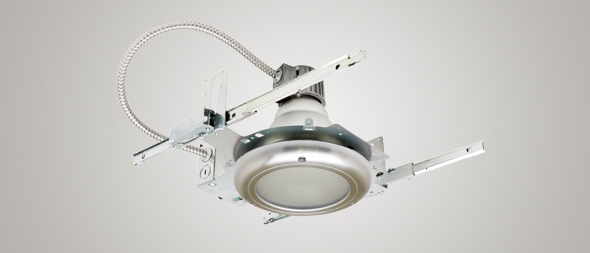

GVRT - Lightshield - Vandal Resistant Accessory

Product Overview

Application: Decorative accessory that protects Gotham recessed luminaires from common vandalism without compromising aesthetics or optical performance.

Features

One piece bezel, marine grade die-cast aluminum, low copper alloy mounts to Gotham mounting frames with stainless steel tamper resistant screws.
Accommodates different lens combinations up to .500 inches thick.
Perimeter lens gasket is one-piece closed-cell silicone "O" ring that seals bezel to ceiling.
IP55 rating (below mounting surface) is available.
Four (4) mounting brackets and gasketed ceiling plate provide a secure and simple means to attach the vandal resistant trim accessory to any Gotham modular mounting frame.
Decorative bezel is available with textured polyester powder coat in all architectural colors.
Also available in three (3) plated finishes: satin chrome, pewter, and oil-rubbed bronze.

Configuration Matrix

Aperture		Description
0"	Lamps: 2 Watt/Type: 32W COMPACT FLUORESCENT Catalog #: AF 2/32TRT 8AR 120 W/GVRT CVX	2 32W HORIZONTAL LAMPS, 8 INCH APERTURE DOWNLIGHT 120V W/GVRT CONVEX GLASS LENS
6"	Lamps: 1 Watt/Type: 42W COMPACT FLUORESCENT Catalog #: AFV 42TRT 6AR W/ GVRT CGL	42W VERTICAL LAMP 6 INCH APERTURE DOWNLIGHT 120V W/GVRT CLEAR GLASS LENS.
6"	Lamps: 1 Watt/Type: 42W COMPACT FLUORESCENT Catalog #: AFV 42TRT 6AR W/ GVRT CVX	42W VERTICAL LAMP 6 INCH APERTURE DOWNLIGHT 120V W/GVRT CONVEX GLASS LENS.
6"	Lamps: 1 Watt/Type: 42W COMPACT FLUORESCENT Catalog #: AFV 42TRT 6AR W/ GVRT PC	42W VERTICAL LAMP 6 INCH APERTURE DOWNLIGHT 120V W/ GVRT 3/16" POLYCARBONATE GLASS LENS.
6"	Lamps: 1 Watt/Type: 42W COMPACT FLUORESCENT Catalog #: AFV 42TRT 6AR W/ GVRT T73	42W VERTICAL LAMP 6 INCH APERTURE DOWNLIGHT 120V W/GVRT T73 PATTERN GLASS LENS.
8"	Lamps: 1 Watt/Type: 42W COMPACT FLUORESCENT Catalog #: AFV 42TRT 8AR W/ GVRT CGL	42W VERTICAL LAMP 8 INCH APERTURE DOWNLIGHT 120V W/GVRT CLEAR GLASS LENS.
8"	Lamps: 1 Watt/Type: 42W COMPACT FLUORESCENT Catalog #: AFV 42TRT 8AR W/ GVRT CVX	42W VERTICAL LAMP 8 INCH APERTURE DOWNLIGHT 120V W/GVRT CONVEX GLASS LENS.
8"	Lamps: 1 Watt/Type: 42W COMPACT FLUORESCENT Catalog #: AFV 42TRT 8AR W/ GVRT PC	42W VERTICAL LAMP 8 INCH APERTURE DOWNLIGHT 120V W/GVRT CLEAR 3/16" POLYCARBONATE GLASS LENS.
8"	Lamps: 1 Watt/Type: 42W COMPACT FLUORESCENT Catalog #: AFV 42TRT 8AR W/ GVRT T73	42W VERTICAL LAMP 8 INCH APERTURE DOWNLIGHT 120V W/ GVRT T73 PATTERN GLASS LENS.
