Product Overview
Application

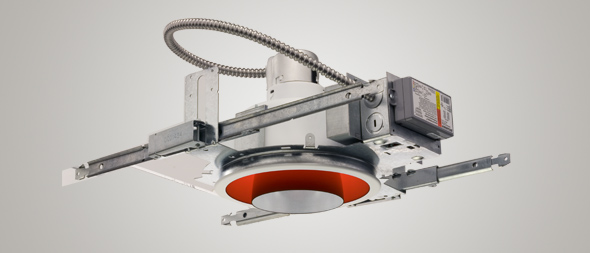

High performance downlight with dynamic color-changing accent features designed to add visual interest. View Flash Presentation
Features
  • A patent-pending reflector optical system allows effective general illumination with a compact fluorescent source to function independently from a color-changing LED source.
  • Complete with an array of Red-Green-Blue LEDs, Candéo® LED provides up to 16.6 million vibrant color options.
  • The inner reflector includes a simple field adjustment to reveal subtle color (inner cone flush with ceiling) or enhance the color effect by offsetting 3/8" or 3/4" of the inner reflector below the ceiling.
  • Control capabilities range from simple RGB color changing effects (no external controls necessary) to elaborate visual effects with sophisticated external controls.
  • DMX512 compatible control (by others) greatly expands capabilities, allowing sophisticated theatrical programs.
Configuration Matrix
Aperture DescriptionIES ViewerSpecSheet
8" Lamps: 1
Watt/Type: 26W
Catalog #: PDLFV 1/26TRT 8AR (COOL WHITE LED)
RECESSED DOWNLIGHT USING 26W TRT VERTICAL LAMP WITH COOL WHITE LED CONTRIBUTION.
8" Lamps: 1
Watt/Type: 26W
Catalog #: PDLFV 1/26TRT 8AR (BLUE LED)
RECESSED DOWNLIGHT USING 26W TRT VERTICAL LAMP WITH BLUE LED CONTRIBUTION.
8" Lamps: 1
Watt/Type: 32W
Catalog #: PDLFV 1/32TRT 8AR (COOL WHITE LED)
RECESSED DOWNLIGHT USING 32W TRT VERTICAL LAMP WITH COOL WHITE LED CONTRIBUTION.
8" Lamps: 1
Watt/Type: 32W
Catalog #: PDLFV 1/32TRT 8AR (BLUE LED)
RECESSED DOWNLIGHT USING 32W TRT VERTICAL LAMP WITH BLUE LED CONTRIBUTION.
